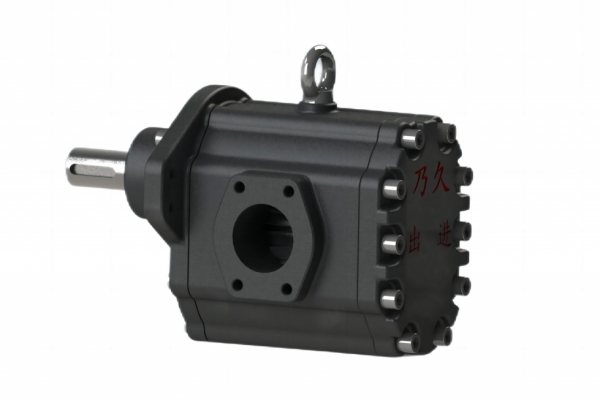

Cast iron D-sleeve construction
It is a cast iron D-bushing structure, with a cast shell, bearing and face seal on the surface, which is mainly for non-corrosive fluids with a viscosity of 500Cps-10000.
|
pressure |
<30Bar |
|
rotate speed |
<1500r/min |
|
viscosity |
<30000cps |
|
temperature |
0-90℃ |
|
Pump casing material |
QT400，QT500，QT600，HT200 |
|
Shaft material |
20CrMoTi，38CrMoAl，440C，High-chromium wear-resistant steel |
|
seal |
Mechanical seals, packing seals, magnetic seals |
|
Static sealing |
Fluoroelastomer, perfluoroese, tetrafluoro, pertetrafluoro |
|
Typical Applications |
High viscosity crude oil, glass sealant, resin, polyurethane isocyanate, asphalt, heavy oil, rosin |
Melt pumps have the advantages of compact structure, simple manufacturing process, low cost, and insensitivity to oil contamination, and are widely used. However, due to defects or improper maintenance in manufacturing, assembly, operation, and maintenance, the pump will often be damaged prematurely......
The melt metering pump is mainly installed at the outlet of the extruder for metering and pressurizing various melts. The advantages of the melt metering pump are safe and reliable operation, stable performance, long service life and low operating costs. The extruder melt metering pump is a positive......
Theoretical displacement of melt pumpThe volume of melt discharged per revolution is called the theoretical displacement of the melt pump, or pump displacement, and its unit is cc/r or cm³/r. The specifications of melt pumps are generally expressed in terms of displacement.Theoretical flow rate of m......
